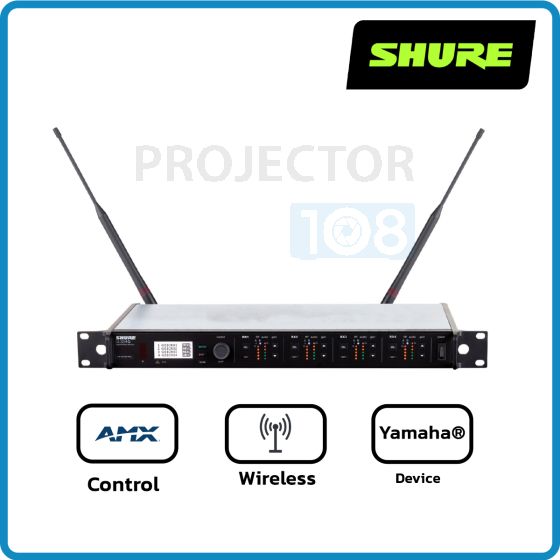

SHURE : ULXD4QA-Q12 Quad Channel Digital Wireless Receiver / 4-channels of uncompromising audio quality, RF signal stability, and advanced setup features in a space-efficient single rack unit - Q12 Band 748-758 MHz.
ราคาพิเศษ
383,300.00฿
ราคาปรกติ
450,000.00฿
พร้อมส่ง
SKU
SHURE : ULXD4QA-Q12
- Compatible systems per frequency band: 67
- Auto Setup Features: Scan/Group Scan/Sync
- Audio Reference Companding: No
- Included Antennas: Remoteable 1/2-wave
- Antenna Options: Yes
- PC Control: Yes
- Receiver Network Ability: WWB6
- Rack Hardware: Included
- Case: No
- Transmitter Display: Backlit multi-function LCD
- Receiver Display: Backlit multi-function LCD + LEDs
- Battery, Endurance: @ 10 mW, SB900: >12 h / 2AA Alkaline: 11 h
- Environment: Conference centre, hotel, house of worship, schools
Further Technical Specs
| Dimensions | 197 mm x 171 mm x 42 mm (7.75 in. x 6.75 in. x 1.65 in.), H x W x D |
| Weight | 913 g (2.0 lbs), without antennas |
| Housing | Galvanized Steel |
| RF Input | |
| Spurious Rejection | >80 dB, typical |
| Connector Type | BNC |
| Impedance | 50 Ω |
| Bias Voltage | 12 - 13 V DC, 170 mA maximum, per antenna |
| Audio Output | |
| Gain Adjustment Range | -18 to +42 dB in 1 dB steps (plus Mute setting) |
| Configuration | 1/4” (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio -) |
| Impedance | 1/4” (6.35 mm): 100 Ω (50 Ω Unbalanced) XLR: 100 Ω |
| Full Scale Output | 1/4” (6.35 mm): +12 dBV XLR: LINE setting= +18 dBV, MIC setting= -12 dBV |
| Mic/Line Switch | 30 dB pad |
| Phantom Power Protection | 1/4” (6.35 mm): Yes XLR: Yes |
| Networking | |
| Power Over Ethernet (PoE) | No, protected |
| Network Interface | Single Port Ethernet 10/100 Mbps |
| Network Addressing Capability | DHCP or Manual IP address |
| Maximum Ethernet Cable Length | 100 m (328 ft) |
